Calibre "Error DECRYPT4"

Calibre "Error DECRYPT4"

An error like:

“ ERROR: Error DECRYPT4 on encrypted line 237 of /home/[user]/mentor_graphics/calibre/DRC_Decks/AIM_Photonics/AIM_PDK_drc_active_v2p0_enc.svrf. SVRF syntax error. Note: This is not a decryption error, but has been caused by an incompatibility between this encrypted section and the rest of the rule deck or the Calibre version.

*** Calibre finished with Exit Code: 4 *** “

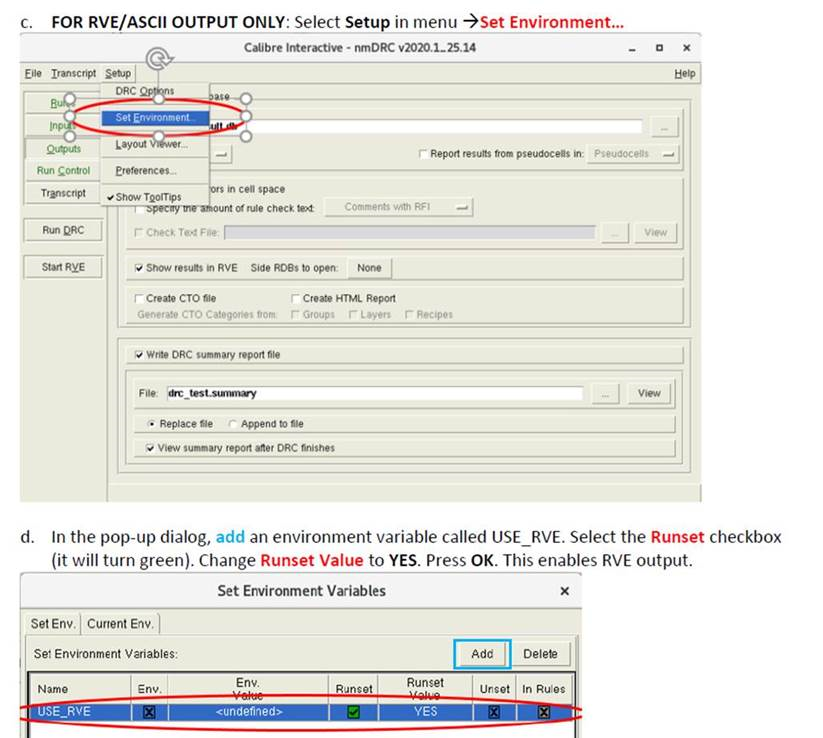

is often due to the selected output format not being consistent with the environment variable. If ASCII output is chose, the "USE_RVE" must be set to "YES":
